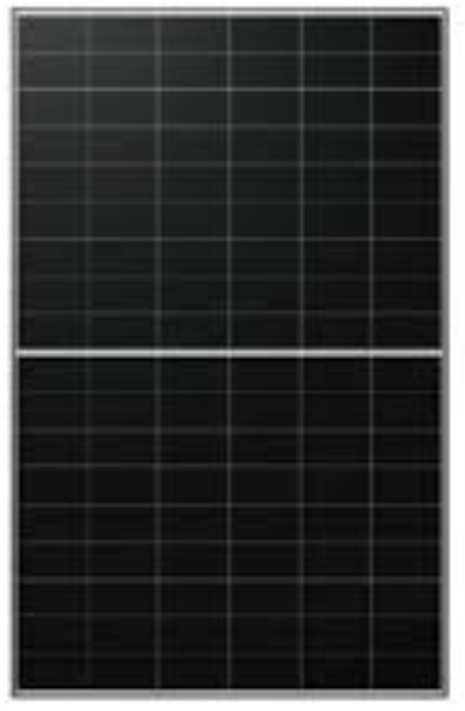

Overview: The Longi HI-MO X10 Explorer LR7-54HTH-475 solar panel is an advanced photovoltaic module designed for maximum efficiency and durability. Featuring cutting-edge HPBC technology, this panel is ideal for both residential and commercial installations.

Specifications:

• Model: LR7-54HTH-475
• Power Output: 475W
• Cell Type: HPBC monocrystalline
• Number of Cells: 108 (Half-Cut)
• Dimensions: 1722 × 1134 × 30 mm
  • • Weight: 21.6kg
• Frame: Anodized aluminum alloy frame
• Front Glass: Single Glass, 3.2mm coated tempered glass
• Junction Box: IP68 rated, three diodes
• Output Cables: 4mm², 1200mm (customizable length)
• Connector Type: MC4 EVO2
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1500V
• Maximum Series Fuse Rating: 25A
• Efficiency: Up to 22.5%
• Fire Class: Class C

Warranty:

• Product Warranty: 25 years
• Power Output Warranty: 30 years linear performance warranty with a guaranteed power degradation of no more than 0.40% annually over 30 years.

Applications:

• Residential Rooftop Systems: Ideal for homeowners seeking high-efficiency solar solutions.
• Commercial Rooftop Installations: Suitable for businesses aiming to reduce energy costs and environmental footprint.
• Ground-Mounted Solar Power Plants: Perfect for large-scale solar farms requiring reliable and efficient energy production.

Benefits:

• High Efficiency: Achieves up to 22.5% efficiency, providing more power in less space.
• Longevity: Engineered for long-term performance with advanced technology and robust materials.
• Aesthetic Design: The black frame adds a sleek and modern look to any installation.
